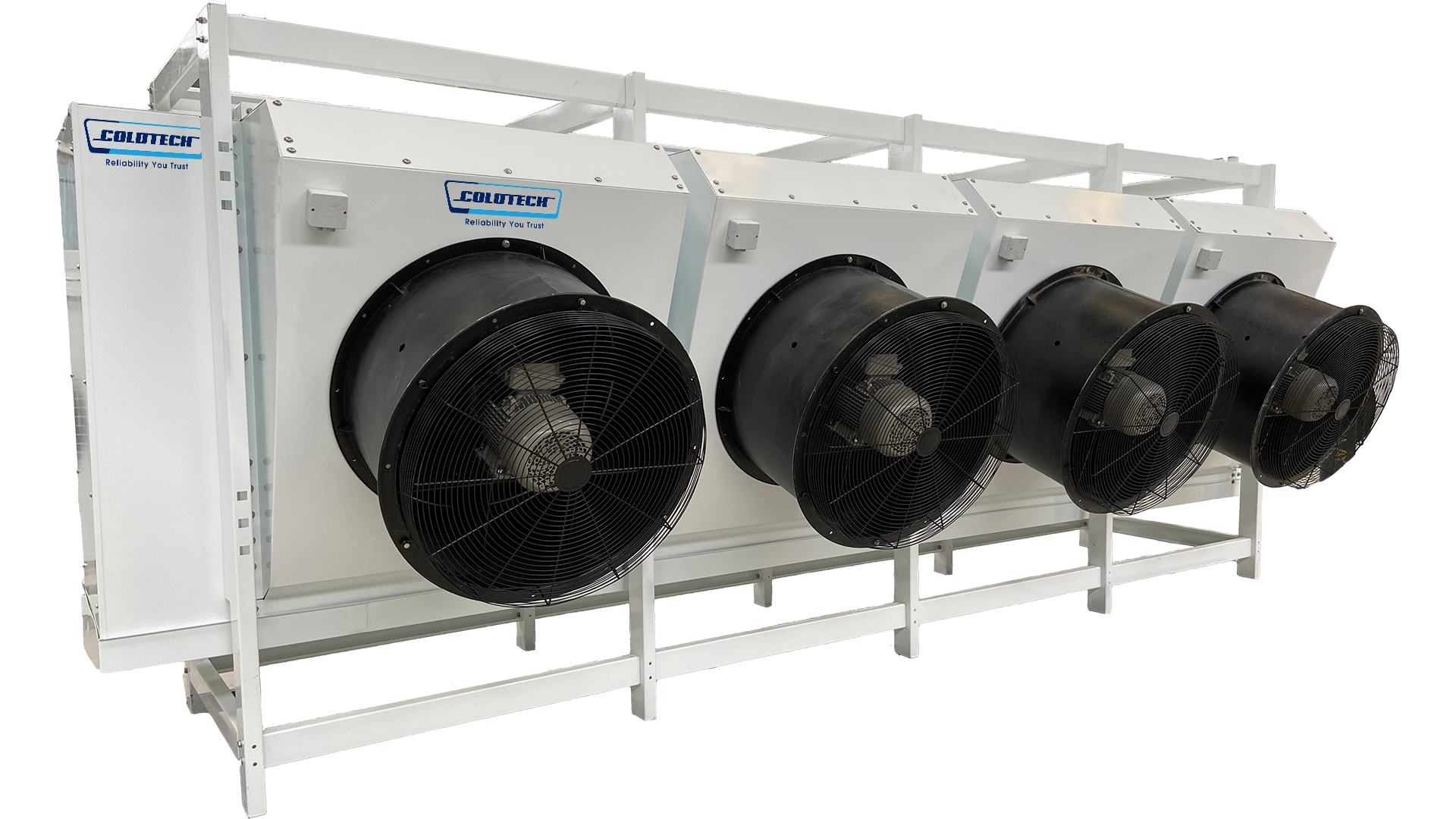

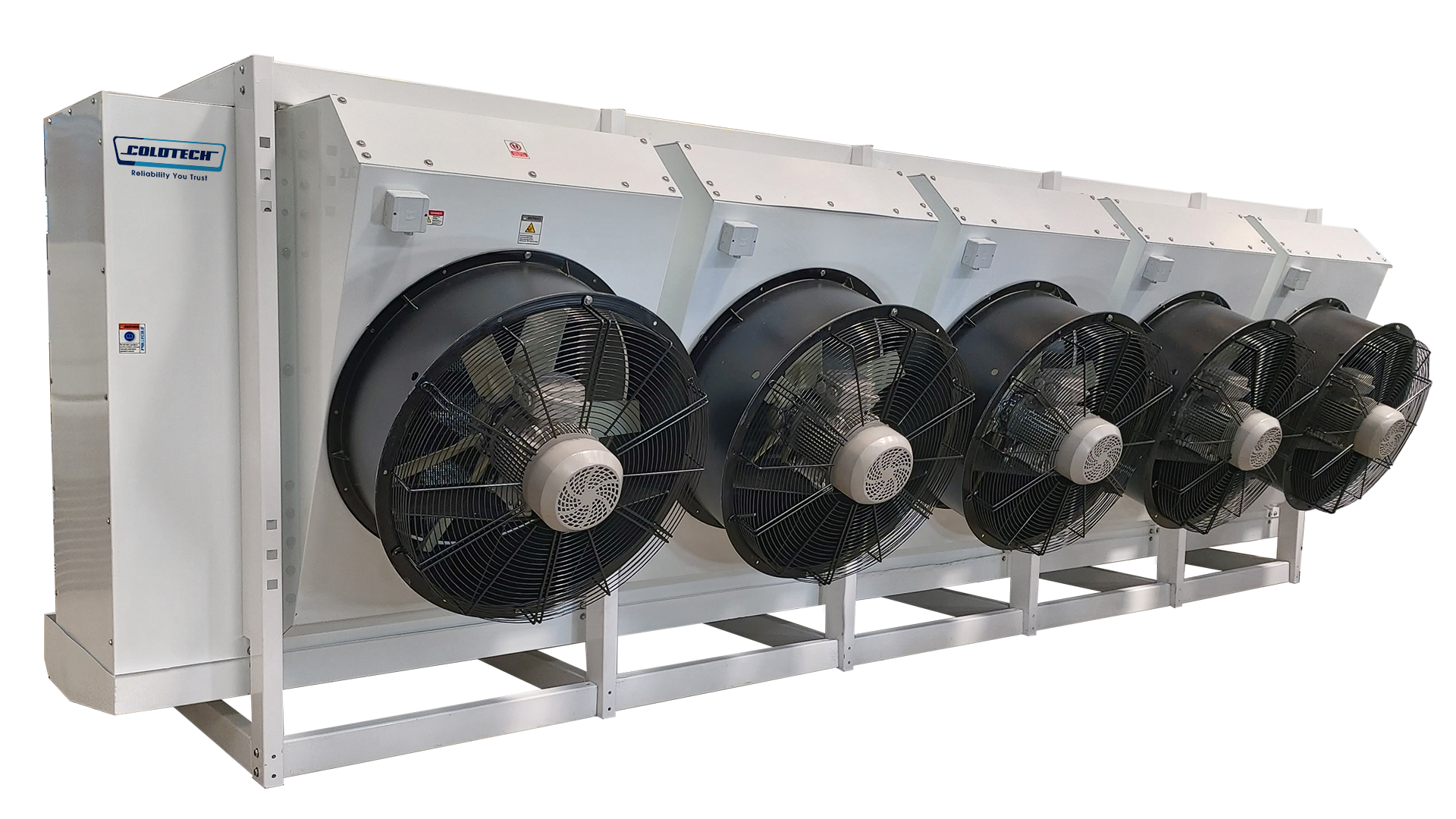

Our inclined evaporators are specially engineered to deliver high-efficiency cooling performance for blast freezers and chillers. Designed with a sloped coil configuration, these units provide optimal air distribution, faster temperature pull-down, and improved drainage during defrost cycles—making them ideal for cold storage, food processing, and other temperature-critical environments.
Designed for rapid temperature pull-down, these units feature high static pressure airflow, angled for direct impact on products. The sleek, durable design ensures optimal performance in blast freezing and chilling applications.
-
Models with 1 to 8 fans
-
Compatible with Freon and Ammonia refrigerants
-
Temperature range: -5 °C (Chiller) to -45 °C (Freezer)
-
GI powder-coated or SS 304 casing for corrosion resistance
-
Defrost options: Air, Electric, Water, and Hot Gas
-
Cooling capacity: 5 kW to 120 kW
-
Fin spacing: 4 mm to 10 mm
-
High-quality fans: Ziehl Abegg, EBM, or Favelle
-
Saw-tooth and plain blade options
-
Corrugated fins for low pressure drop and efficient heat transfer
-
Rippled fin edges for enhanced airflow turbulence
-
Bullet-expanded copper tubes (Freon) and hydraulically expanded SS tubes (Ammonia)
