CTH/4.5/302-TCD

Description

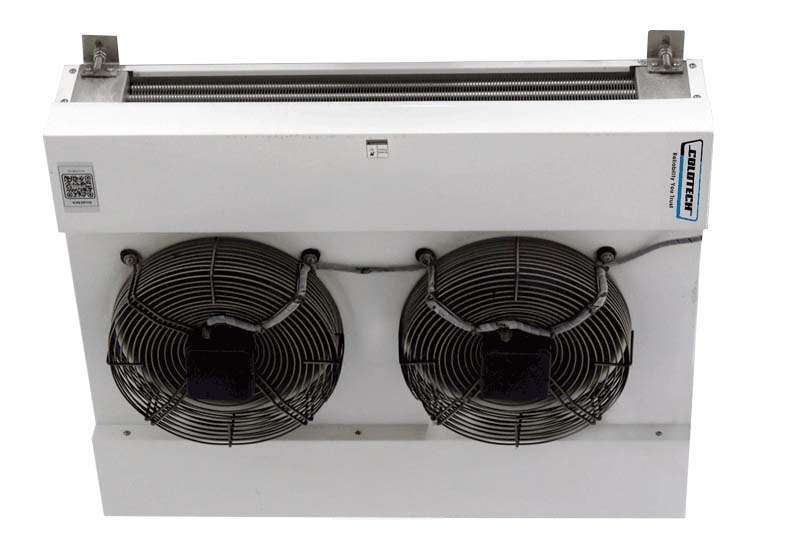

The ColdTech Dual Discharge Evaporator is engineered to deliver superior cooling performance in industrial settings requiring efficient air distribution. Its slimline design and dual discharge airflow make it ideal for long and wide rooms, including blast-freeze applications.​



Key Features:

  • Dual Discharge Airflow: Provides balanced and consistent cooling across expansive areas, enhancing product preservation and operational efficiency.​
  • Slimline Design: Optimized for installations with limited ceiling space, allowing for maximum utilization of storage areas.​
  • Floating Coil Technology: Prevents refrigerant-carrying tubes from contacting end sheets, allowing contraction-free operation and significantly reducing the risk of tube damage and refrigerant leaks.
  • Flexible Air Discharge Options: Configurable with either dual air discharge or downblow air discharge to suit various application needs.​
  • Easy Maintenance: Features a hinged drip tray for convenient access during cleaning and inspections, minimizing downtime.​
  • Versatile Refrigerant Compatibility: Compatible with all available refrigeration fluids and optimized for use with natural refrigerants, offering flexibility for diverse applications.​



Applications:

  • Blast-Freezing Facilities: Ensures rapid and uniform cooling essential for preserving product quality in blast-freezing processes.​
  • Cold Storage Warehouses: Provides efficient temperature control for large storage areas, maintaining optimal conditions for various products.​
  • Food Processing Plants: Delivers consistent cooling necessary for food safety and quality during processing operations.​
  • Distribution Centers: Offers reliable refrigeration for goods in transit, ensuring product integrity from storage to delivery.​



The ColdTech Dual Discharge Evaporator combines innovative design with robust performance, making it the ideal solution for modern industrial refrigeration needs where efficiency, reliability, and adaptability are critical.

Technical Specification

Model
CTH/4.5/302-TCD
Voltage
220V/50Hz/1Ph
No. of Fans
2
Refrigerant
Fin Pitch (mm)
4.5
Capacity SC1 (Te=0°C TR=10°C kW)
4.31
Capacity SC2 (Te=-8°C TR=0°C kW)
Capacity SC3 (Te=-25°C TR=-18°C kW)
Capacity SC4 (Te=-31°C TR=-25°C kW)
Surface Area (m2)
7.29
Tube Volume (l)
2
Evaporator Fan Dia (mm)
300
Air Flow m³/h
2200
Fan Power
170
Defrosting Coil Capacity (W)
Defrosting Tray Capacity (W)
Height (mm)
166
Depth (mm)
720
Width (mm)
1034
Hanging hole distance (mm)
770
Pipe connection (inlet)
3/8"
Pipe connection (outlet)
5/8"
Load Type
Protection Rating
Working Temperature
Storage Tempeature
Compressor load KW
Defrosting
Status Indicators
AlARM SIGNAlS
Door Switch Connection
HP/LP Switch Connection
Compressor Functioning Mode Selection
Room Light Switch
Solenoid Valve
Compressor Oil Heater
Alarm Relay
Supervision System
Compressor
Volume of the cargo
Operation Current
Temperature
Road Operation (Watts, Kcal/h, BTU/h)
Temperature
Road Operation (Watts, Kcal/h, BTU/h)
Weight
Condenser (Dimensions) WxDxH mm
Evaporator (Dimensions) WxDxH mm
Power Supply
Overall Power Consumption
Temperature Measurement Range
Temperature Control Range
Temperature Measurement Accuracy
Resolution
Relay Capacity (Compressor)
Relay Capacity (Defrost)
Relay Capacity (Fan)
Relay Capacity (Light)
Relay Capacity (Alarm)
Storage Temperature
Sensor Type
Communication Mode

ENQUIRY!

Additional information

Weight 680132426 kg
Dimensions 680516 × 68051784 cm
