CUMC6-CR21-T
Description

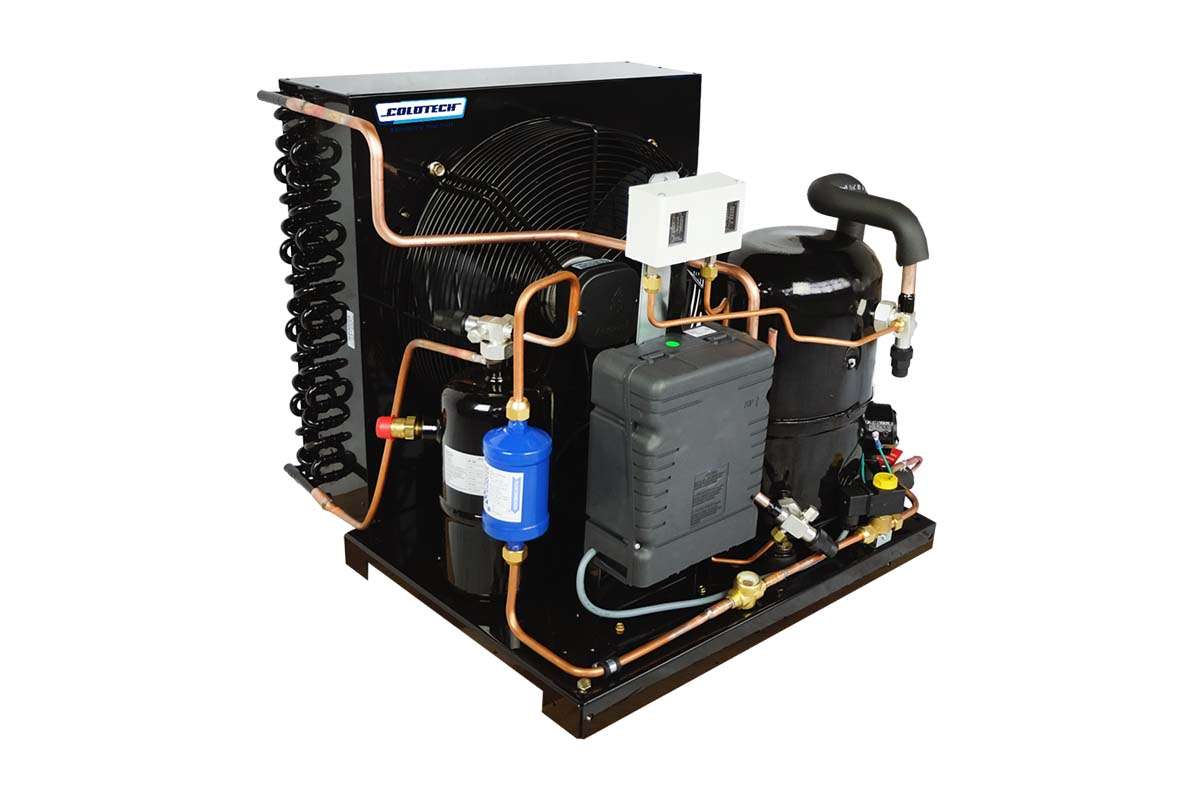

ColdTech’s Air-Cooled Hermetic Reciprocating CDUs are engineered for medium- and low-temperature refrigeration systems demanding reliability, compact design, and high energy efficiency. These units combine hermetic compressors with optimized air-cooled condensers to deliver consistent cooling performance, even under extreme ambient conditions.
Technical Highlights:
- Compact, factory-assembled, and pre-wired for quick installation
- High-efficiency hermetic compressors compatible with R134a / R404A / R407C / R449A
- Air-cooled condenser with copper tubes and aluminum fins for superior heat exchange
- Integrated liquid receiver, filter drier, service valves, and control panel
- Comprehensive protection for overload, pressure, and temperature safety
- Low vibration and noise, ensuring smooth and quiet operation
Applications:
Cold rooms, reach-in chillers, display cabinets, food processing, and pharmaceutical storage.
Summary:
ColdTech’s Air-Cooled Hermetic Reciprocating CDUs are compact, energy-efficient, and built for long-term performance. Designed for demanding refrigeration environments, they offer stable operation, easy maintenance, and reliable cooling efficiency across commercial and industrial sectors.
Mechanical Data
| Condensing unit model | CUMC6-CR21-T |
| Compressor model | CR21K7ME-TFM-111 |
| Receiver capacity (l) | N.A |
| Air flow (m3/hr) | 2800 |
| Depth/width [D / W] | 820/655 |
| Height [ H ] (mm) | 545 |
| Base mounting Ø [ b x t ] (mm) | 782 X 550 |
| Suction Ø [ SL ] (“) | 5/8" |
| Liquid Ø [ LL ] (“) | 3/8" |
Electrical Data
| Condensing unit model | CUMC6-CR21-T |
| Compressor model | CR21K7ME-TFM-111 |
| Compressor maximum operating current (A) | 5.1 |
| Compressor locked rotor current (A) | 27.5 |
| Condenser fan (qty x model Diameter) | 1 X 400 |
| Condenser fan current 230V/1/50Hz(A) | 0.82 |
